Home > Products > Other X-Ray Baggage Scanner > Vehicle Inspection Systems for sale MCD-V6S

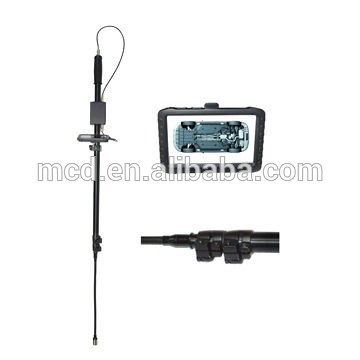

Vehicle Inspection Systems for sale MCD-V6S

Min. Order:
  • Product Description


realible hot sale  waterproof Under Vehicle Camera System/Vehicle Inspection Systems for sale



Technical specifications:

Waterproof camera

  1. Dimensions: 23x50mm
  2. Flexible pipe: 500mm
  3. Camera casing: stainless steel 304
  4. Camera lens: sapphire blue
  5. Sensor dimensions: 1/4 inch
  6. 6.Senor pixel: PAL at 720x576/NTSC: 720x480
  7. Lens visible angle: 120°
  8. Camera adjustable angle: arbitrary angle
  9. Camera light source: 12 LEDs
  10. Waterproof standard: IP68
  11. Working voltage: DC 12V
  12. Working current: 100mA
  13. Rod max length: 3.1m
  14. Working temperature: -10-50°C

LCD screen:

  • LCD dimensions: 4.3-inch, 16:9
  • Resolution: 480*320*RGB
  • Power supply: 5V/DC
  • SNR: 85dB
  • USB: 2.0 (speed)
  • Output: 20Hz-20kHz


  • High definition flexible hose camera, suitable for different angles and special occasions
  • Equipped with 4.3 inch LCD screen display multimedia storage image playback, showed more clear
  • With infrared light supplement can be used for the dark place or use at night
  • Portable-type pipe with a single-hand operation to change the height



    Applied to check the car/table/under stools or container and others special occasions if they are normal, security/anti-terrorism/after the earthquake search tool life





Packing list:

  1. Camera
  2. Stretch rod
  3. Aluminum-alloy case
  4. Battery box
  5. 4.2-inch LCD screen
  6. Adjustable-pitch holder
  7. Signal cable
  8. Camera head signal connector
  9. 12.6V/1000mA charger
  10. 5V/360mA charger


Our Services



  1. First of all, we promised that all the products are brand-new.
  2. Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
  3. Thirdly, we package the products by superior high quality carton or wooden case to ensure the completeness and low delivery loss.
  4. If you have any problems when receive the products, pls kindly contact our aftersales team.


  1. We only support world-famous Express companies (EMS, DHL, UPS, FedEx etc.), faster and safer by airline, except Long range detectors which set batteries inside (TX-MPI, VR1000BII, VR Long Range King). For reducing our shipping fee, large size articles (Walk Through Metal Detector, X Ray Baggage Scanner, Needle Metal Detector etc.) will go Ocean shipping.


  1. Within one month, if you’re not satisfied with product or product damaged (Not man-made), you could change unconditionally. Return shipping cost on buyer's account.
  2. 12 months warranty for all accessories and lifelong service. Online video instruction and training is available

Looking for ideal Under Vehicle Camera Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Vehicle Inspection Systems are quality guaranteed. We are China Origin Factory of Under Vehicle Camera System. If you have any question, please feel free to contact us.
